ES04 - Architecture Design

Revisions

• Version 2 (January 6, 2026):
  • Changed POS system’s domains to better fit wildcard DNS-01.

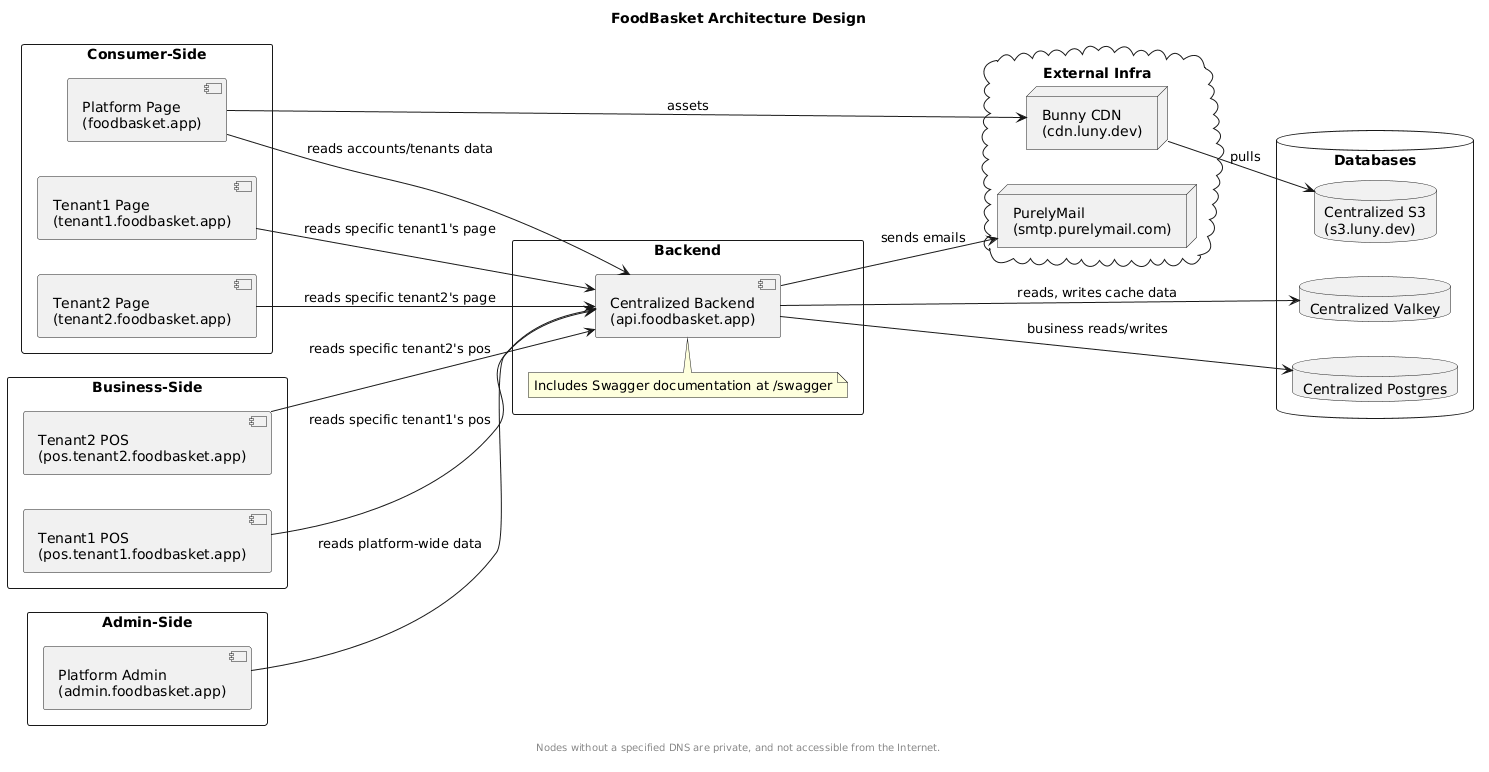

• Initial version: v1
  • Released on January 3, 2026.

Summary

This document outlines the architecture design of the FoodBasket platform. This should show a high-level logical overview and some simple user flows on how a request hits both ends.

Architecture Design

Includes the following components, truncated tenant2 for short:

• Home Platform: foodbasket.app. This provides the landing page to advertise the software, our visions and such things for a SaaS. Also includes simple SSO across the platform here to easily navigate to each tenant’s storefront, included as a way for consumers to order from.
• Tenant’s Platform: tenant.foodbasket.app. This is the hosted landing page of the restaurant registered with the service. This provides customization over brand identity like colors, fonts, and how to display the menus.
• Tenant’s POS System: tenant.pos.foodbasket.app. Provided as a separate system than the landing page to optimize for PWA-like architecture, as well as isolation between a work-user and a normal user.
• The Platform-wide Admin System: admin.foodbasket.app. Allows managing all tenants.

Other fluffs such as CDN, S3 service are out of scope for this document and will not be detailed.

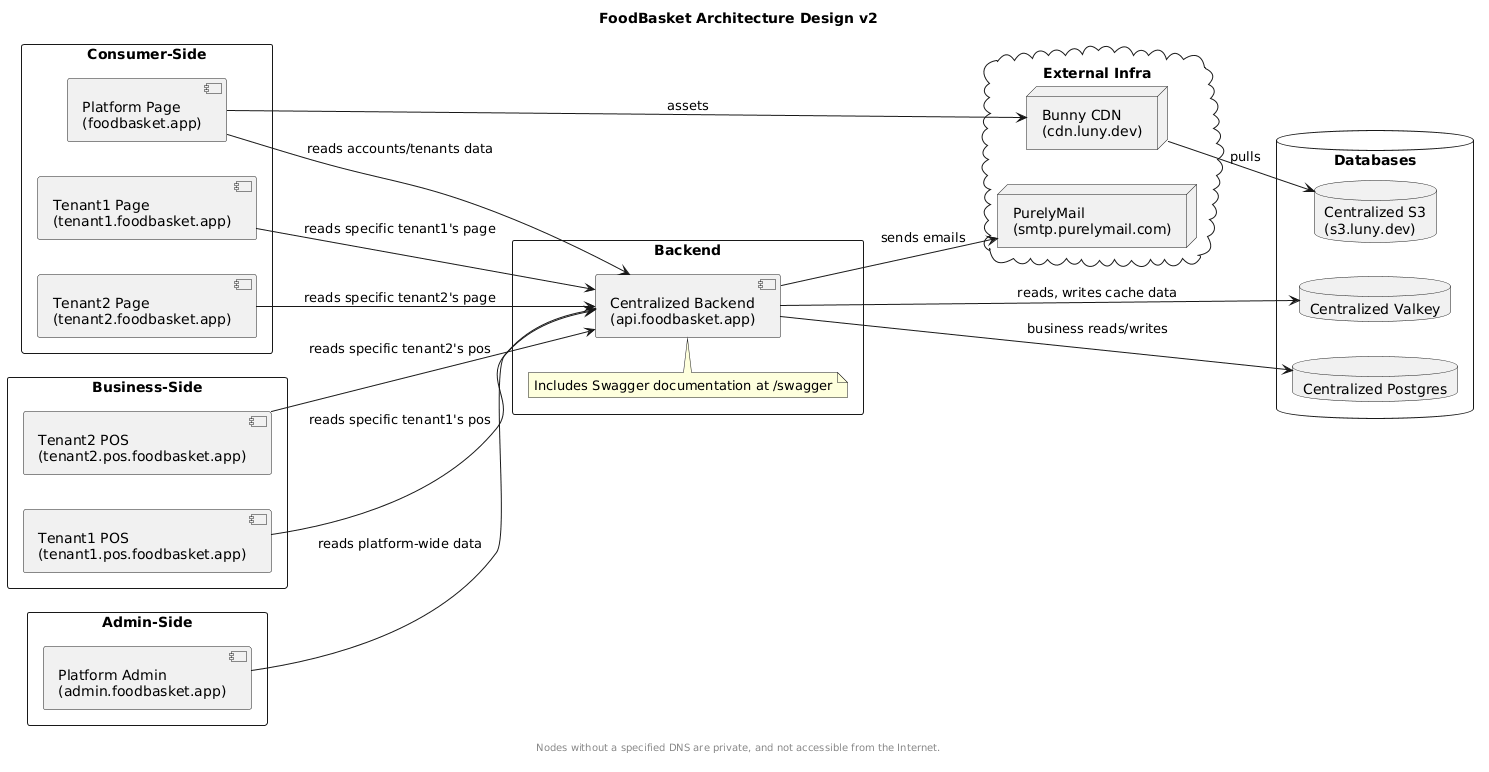

From version 2, tenant’s POS URL has been changed from pos.tenant.foodbasket.app to tenant.pos.foodbasket.app, to allow better and more flexible management with wildcard domains like *.pos.foodbasket.app.

The rationale behind this allows for more dedicated services later on, and easier management in the future, such as a Media Manager at *.media.foodbasket.app, for example, or a *.kds.foodbasket.app for a Kitchen Display Service, etc.
